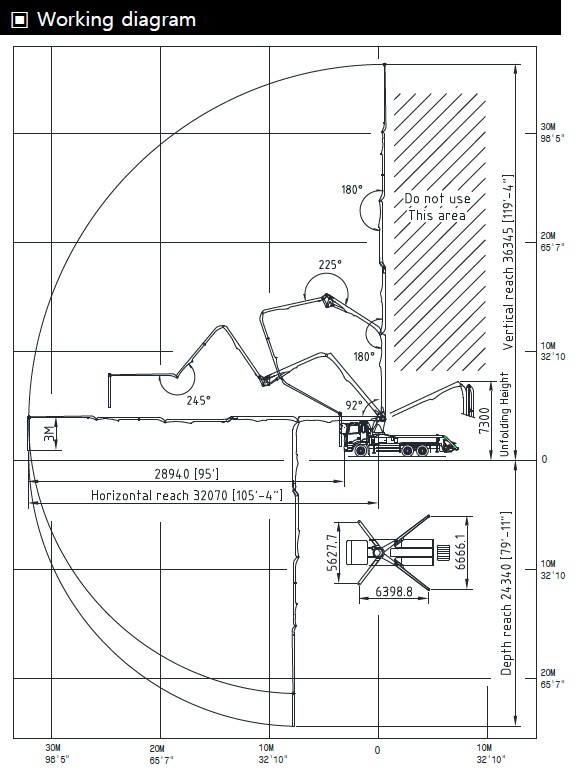

Vertical reach

36.3m

Horizontal reach

32.1m

Front-of-truck reach

28.9m

Unfolding height

7.3m

Section articulation

92°/180°/225°/180°/245°

Rotation

370°

Delivery line

125mm

Proportional boom

Yes

End hose length

3m

Outrigger spread - front

5.6m

Outrigger spread - rear

6.7m

Maximum output

(R)120m3/h

(R)155m3/h

Concrete cylinder

Ø230 x 1800

Ø230 x 1800

Stroke per minute

(R)26

(R)34

Concrete pressure

(R)63 bar

(R)63 bar

Hopper capacity

600 litres

600 litres

S-tube

Ø200 x Ø180

Ø200 x Ø180

Cycling system

Hydraulic with manual override

Hydraulic with manual override

Max. aggregate size

40mm

40mm
