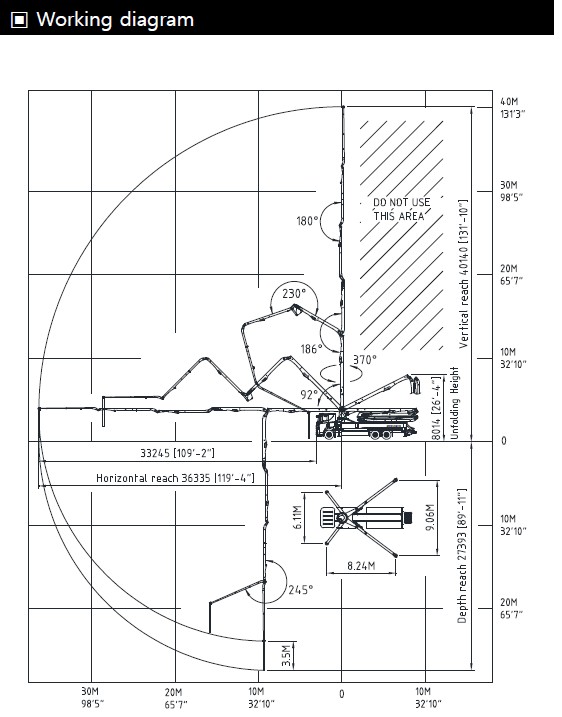

Vertical reach

40.1m

Horizontal reach

36.3m

Front-of-truck reach

33.2m

Unfolding height

8m

Section articulation

92°/180°/230°/180°/245°

Rotation

370°

Delivery line

125mm

Proportional boom

Yes

End hose length

3.5m

Outrigger spread - front

6.1m

Outrigger spread - rear

9.1m

Max. Outrigger weight

25,000 kg

Maximum output

150 m3/hr

Concrete cylinder

Ø230 x 2100

Stroke per minute

30

Concrete pressure

69 bar

Hopper capacity

0.6 m3

S-tube

Ø200 x Ø180

Hydraulic pump

Rexroth – A11VLO260

Cycling system

Hydraulic with manual overrides

Max. aggregate size

40mm
